Install
Close DAWs before replacing the VST3. Use only the verified package instructions, reopen the host and rescan. The official customer ZIP/setup is being reconstructed before any sale.
v0.1 candidate manual
MiniSjammie
Compact filter effect for fast filtering, drive and synced or audio-reactive Motion. This manual follows the current 17-parameter Windows x64 VST3 candidate.
First movement
Quick start
- Load MiniSjammie as an audio effect.
- Choose LP, HP, BP or Notch and set Cutoff.
- Add Resonance and Drive carefully.
- Choose Clean, Warm or Bite.
- Raise Motion and Depth, then choose LFO, Envelope or Hybrid.
- Enable Sync and pick a Division when movement should follow the DAW.
- Level-match with Output and Mix.
HOST SYNC
With Sync on, Division follows host BPM. Available divisions are 1/16, 1/8, 1/4, 1/2, 1 Bar and 2 Bar.
State and presets
All 17 parameters participate in saved state. The current project contains 20 factory presets; exact public preset notes will freeze with the release package.
Filter and level

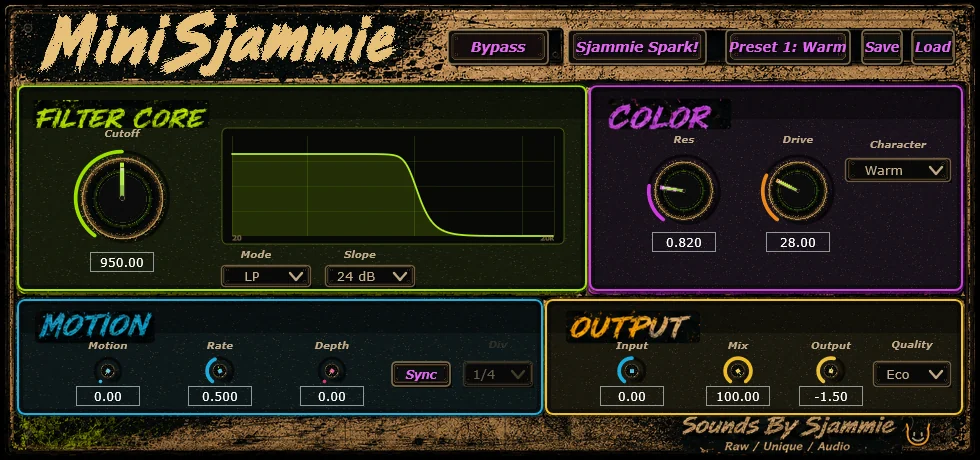

Core controls
Input-18 to +18 dB input trim.
Cutoff20 Hz to 20 kHz filter frequency.
Resonance0.30 to 10.0 emphasis around cutoff.
ModeLowpass, Highpass, Bandpass or Notch.
Slope12 dB or 24 dB response.
Drive0 to 100% drive into the character path.
CharacterClean, Warm or Bite.
Mix0 to 100% dry-wet balance.
Output-18 to +12 dB output trim.
BypassHost-visible effect bypass.
Motion
Movement controls
MotionOverall movement amount from 0 to 100%.
RateFree-running rate from 0.05 to 20 Hz when Sync is off.
Sync / DivisionHost-tempo movement using six musical divisions.
DepthModulation depth from 0 to 100%.
Motion SourceLFO, incoming-audio Envelope or Hybrid movement.
QualityEco, 2x or 4x processing. Start with Eco and raise it when the session needs it.
Current evidence
Compatibility status
FormatWindows x64 VST3 candidate. Standalone is not a claimed customer format yet.
Automated matrix44.1, 48 and 96 kHz; block sizes 1 through 2048; pluginval strictness 10.
BitwigLocal pilot pass covers load, visible controls, automation, state recall, render/export and idle-noise proof.
DeliveryThe frozen VST3 hash is preserved, but the official customer ZIP/setup must be rebuilt and revalidated before release.
Troubleshooting
Movement not moving?
Raise Motion and Depth, confirm a Motion Source, and check Sync/Division or free Rate. For envelope movement, feed the plugin an audible input signal.
